Compressor for Mixed Gas (Recovery, Boosting, Loading and Unloading)

Description

Advantages

Parameters

Selection

Download

Product Applications

Mainly used for unloading, loading, tank inversion, residual gas recovery, and liquid residue recovery in process gas systems. It is widely applicable for pressurization, stabilization, and gas recovery in various process workflows.

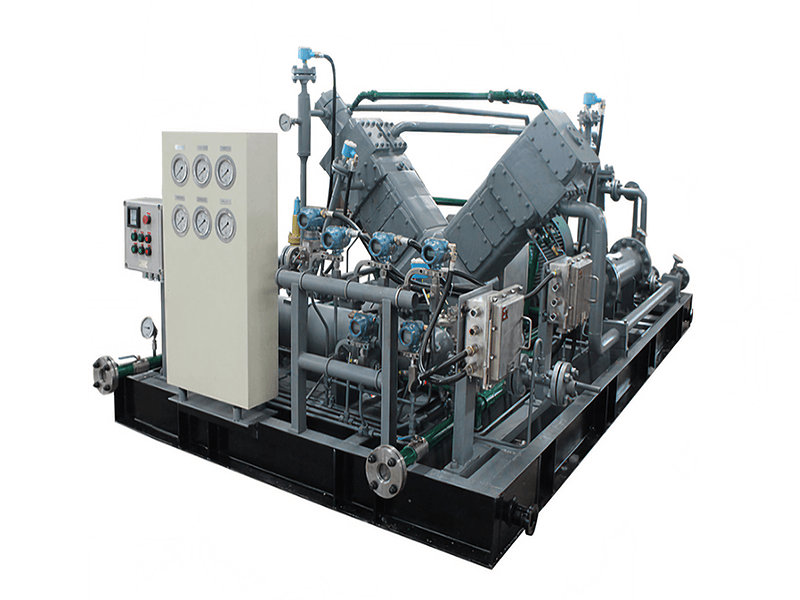

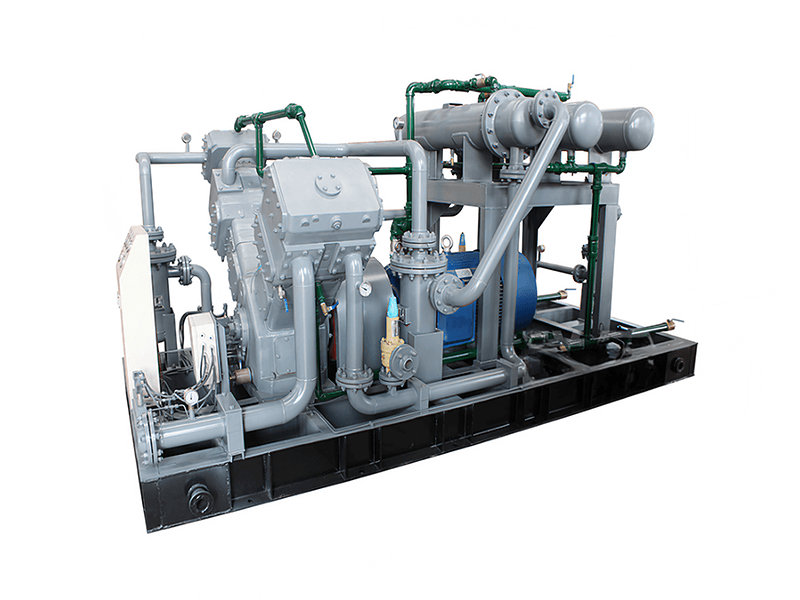

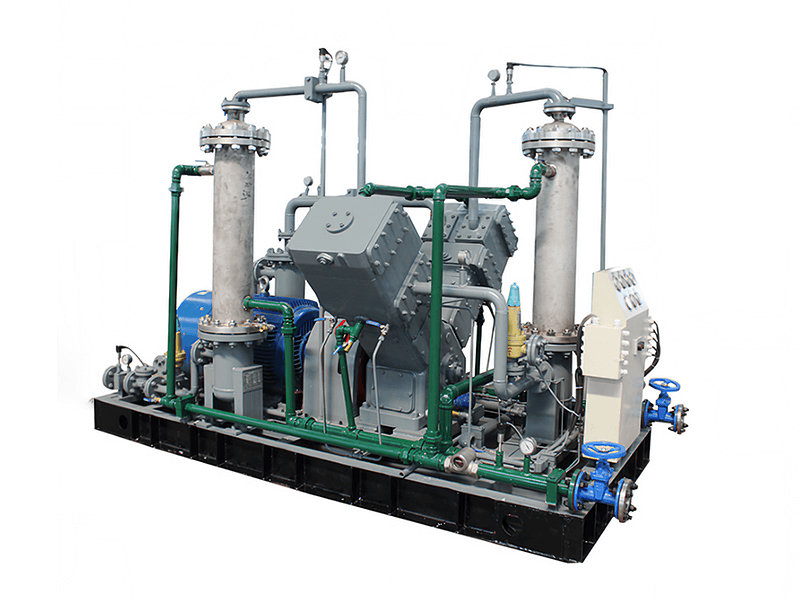

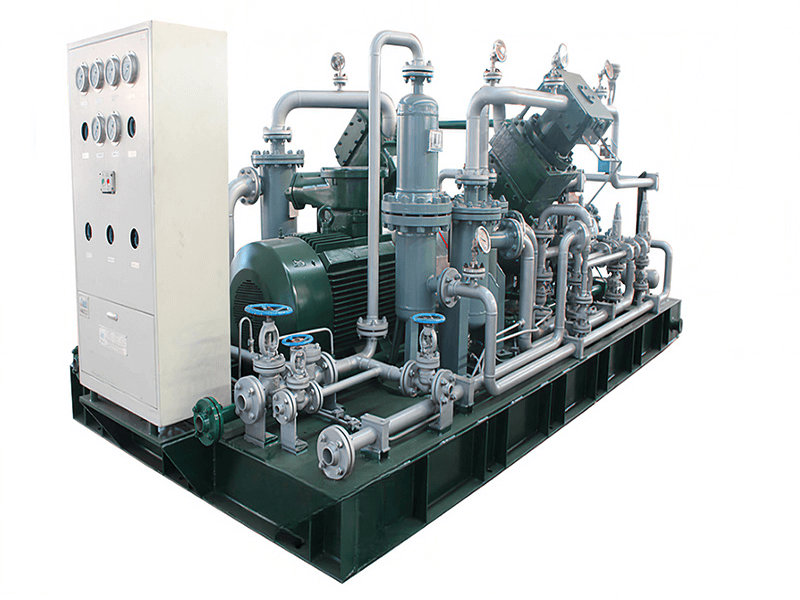

Structural Introduction

The unit consists of a compressor unit, electric motor, coupling, flywheel, pipeline system, cooling system, electrical equipment, and auxiliary equipment.

Lubrication Method

1. Oil-free

2. With oil

(Check according to actual requirements)

Cooling Method

1. Water cooling

2. Air cooling

(Choose according to actual requirements)

Overall Structural Form

Fixed type, mobile type, skid-mounted type, soundproof cabin type, etc.

(Choose according to actual requirements)

Key Advantages

1. High efficiency, strong reliability, and high level of automation.

2. Fewer wearing parts, low vibration, low noise, and easy operation and maintenance.

3. The main compressor and auxiliary equipment are all installed on a skid frame, ensuring stable and reliable operation. The overall skid-mounted design facilitates the transportation and installation of the compressor.

4. All machine components are meticulously designed.

Product Features

1. This series of compressor products have characteristics such as low noise, low vibration, compact structure, smooth operation, high safety and reliability, and a high level of automation. It can also be equipped with a remote data display and control system according to customer requirements.

3. It has functions like low compressor oil pressure, low water pressure, high temperature, low intake pressure, and high discharge pressure alarms, making the compressor operation more reliable.

Model	Capacity m3/min	Inlet Pressure (Mpa)	Outlet Pressure (Mpa)	Weight (Kg)	Power （Kw）
VW-6/16-24	6	1.6	2.4	2600	110
VW-6/(0-1.62)-(5-21)	6	0-0.162	0.5-2.1	2350	75
WW-26.7/0.5-10	26.7	0.05	1	4500	250
DW-2/0.2-16	2	0.02	1.6	1500	22
VW-3/8	3	Atmospheric Pressure	0.8	1500	22
2VW-50/3.5	50	Atmospheric Pressure	0.35	6000	220
2VW-16.7/0.5-20	16.7	0.05	2	6500	185
ZW-0.6/6-10	0.6	0.6	1	760	5.5
ZW-0.8/12	0.8	Atmospheric Pressure	1.2	1200	7.5
DW-9.5/7	9.5	Atmospheric Pressure	0.7	2600	55
WW-4.5/0.5-10	4.5	0.05	1	2100	37
2VW-25/25	25	Atmospheric Pressure	2.5	2100	250
2VW-50/3.5	50	Atmospheric Pressure	0.35	6000	220
DW-4.5/0.5-13	4.5	0.05	1.3	2500	18.5
ZW-0.46/(5-10)-（15-20)	0.46	0.5-1.0	1.5-2.0	850	11
VW-5.6/(1.5-2)-25	5.6	0.15-0.2	2.5	2000	55
W-6.5/(1-3)-7	6.5	0.1-0.3	0.7	1900	37
VW-2.5/3-250	2.5	0.3	25	3500	110
