Special Gas Compressor

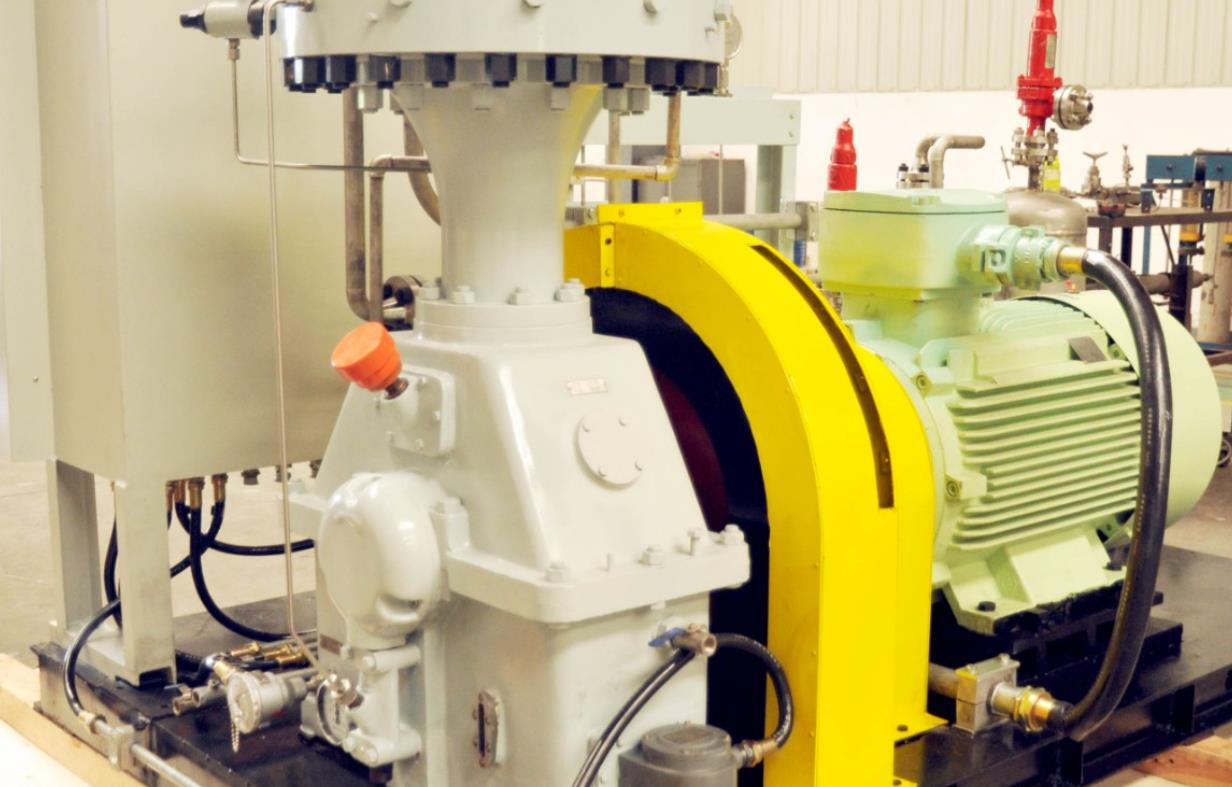

Compressor for Methane Gas (Boosting, Recovery, Loading and Unloading)

Z-Type Vertical: Displacement ≤ 3m3/min, Pressure 0.02MPa-4Mpa

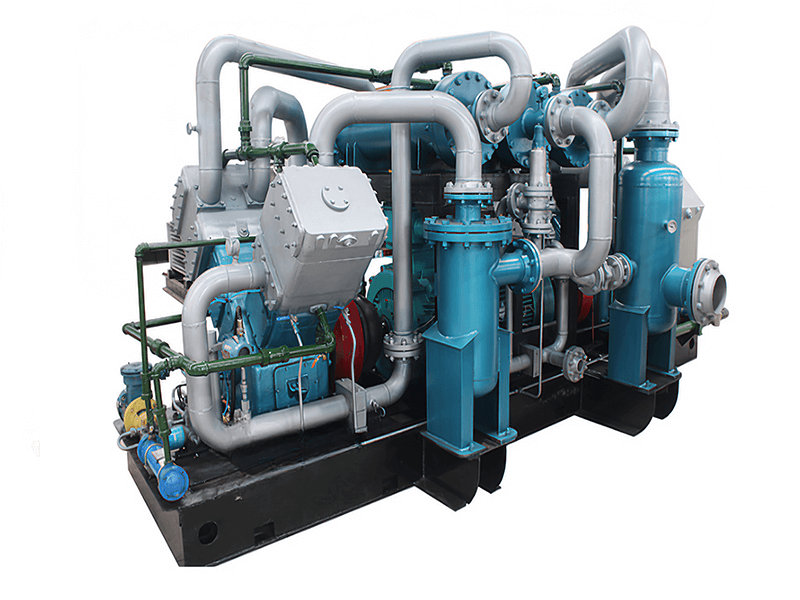

D-Type Symmetrical: Displacement ≤ 10m3/min, Pressure 0.2MPa-2.4Mpa

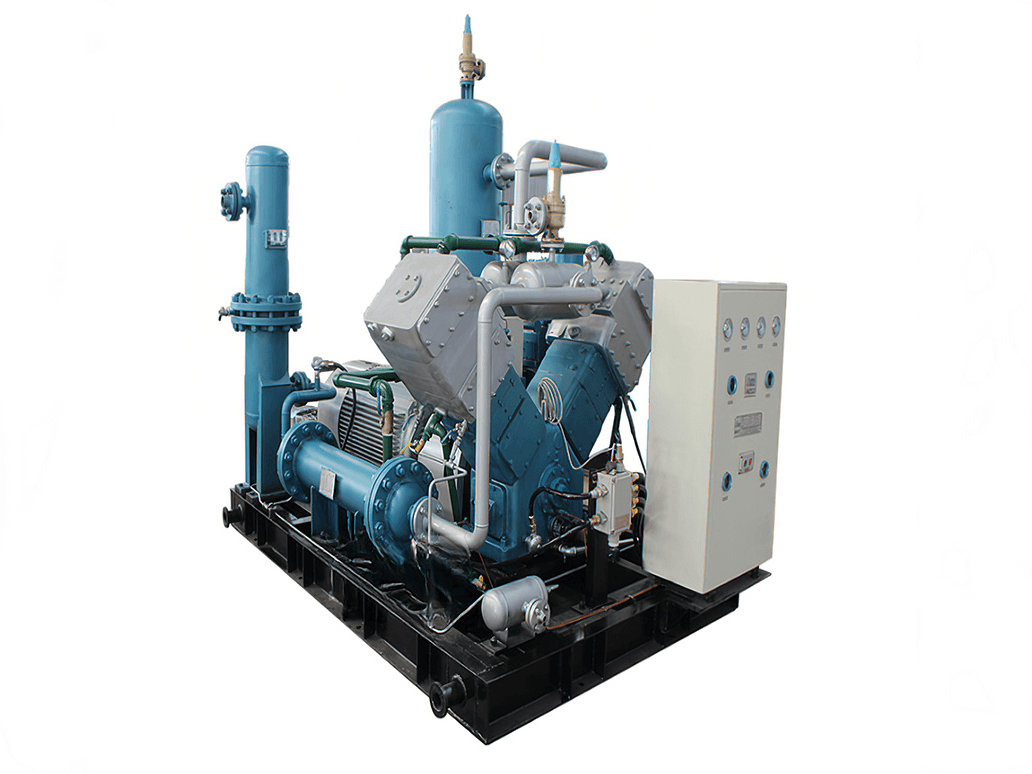

V-Type: Displacement ranges from 0.2m3/min to 40m3/min. Discharge pressure ranges from 0.2MPa to 25MPa

Description

Advantages

Parameters

Selection

Download

Product Application

Mainly used in the process of unloading, loading, tank filling, residual gas recovery, and liquid residue recovery in process gas systems. Widely applicable in boosting, stabilizing, and gas recovery within process flow.

Structure Introduction

The unit consists of the compressor mainframe, electric motor, coupling, flywheel, piping system, cooling system, electrical equipment, and auxiliary equipment.

Lubrication Method

1. Oil-free

2. Oil-based

(Selected based on actual requirements)

Cooling Methods

1. Water cooling

2. Air cooling

(Selected based on actual requirements)

Overall Structural Forms

Fixed, mobile, assembly, soundproof cabin, etc. (Selected based on actual requirements)

Key Advantages

1. High efficiency, strong reliability, and high level of automation.

2. Fewer wearing parts, low vibration, low noise, and easy operation and maintenance.

3. The main compressor and auxiliary equipment are all installed on a skid frame, ensuring stable and reliable operation. The overall skid-mounted design facilitates the transportation and installation of the compressor.

4. All machine components are meticulously designed.

Product Features

1. This series of compressor products feature low noise, minimal vibration, compact structure, stable operation, high safety and reliability, and a high level of automation. They can also be equipped with a data remote display and control system according to customer requirements.

2. The product has functions for stopping the compressor in case of low compressor oil pressure, low water pressure, high temperature, low inlet pressure, and high discharge pressure, making the compressor operation more reliable.



Model

Flow m3/min

Inlet Pressure

(Mpa)

Outlet Pressure (Mpa)

WeightKg)

Power(Kw)

VW-6/16-24

6

1.6

2.4

2600

110

VW-6/(0-1.62)-(5-21)

6

0-0.162

0.5-2.1

2350

75

WW-26.7/0.5-10

26.7

0.05

1

4500

250

DW-2/0.2-16

2

0.02

1.6

1500

22

WW-3/8

3

normal pressure

0.8

1500

22

2VW-50/3.5

50

normal pressure

0.35

6000

220

2VW-16.7/0.5-20

16.7

0.05

2

6500

185

ZW-0.6/6-10

0.6

0.6

1

760

5.5

ZW-0.8/12

0.8

normal pressure

1.2

1200

7.5

DW-9.5/7

9.5

normal pressure

0.7

2600

55

VW-4.5/0.5-10

4.5

0.05

1

2100

37

2VW-25/25

25

normal pressure

2.5

2100

250

2VW-50/3.5

50

normal pressure

0.35

6000

220

DW-4.5/0.5-13

4.5

0.05

1.3

2500

18.5

ZW-0.46/(5-10)-(15-20)

0.46

0.5-1.0

1.5-2.0

850

11

VW-5.6/(1.5-2)-25

5.6

0.15-0.2

2.5

2000

55

V-6.5/(1-3)-7

6.5

0.1-0.3

0.7

1900

37

WW-2.5/3-250

2.5

0.3

25

3500

110
