Coalbed Methane Recovery Compressor (Natural Gas Recovery).

Description

Advantages

Parameters

Selection

Download

Product Applications

Mainly used for boosting and transporting coalbed methane (CBM). (Natural gas pipeline gas extraction, recovery of combustible gases for storage)

It can also be used in pharmaceuticals, brewing for mixing, chemical industry for gas pressurized transport, food industry for blow molding bottle production, and in the machine manufacturing industry for dust removal from parts.

Product Features

1. The product features low noise, minimal vibration, compact structure, stable operation, high safety and reliability, and a high level of automation. It can also be equipped with a data remote display and control system as per customer requirements.

2. It includes functions for stopping the compressor in case of low compressor oil pressure, low water pressure, high temperature, low inlet pressure, and high discharge pressure, making the compressor operation more reliable.

Structure Introduction

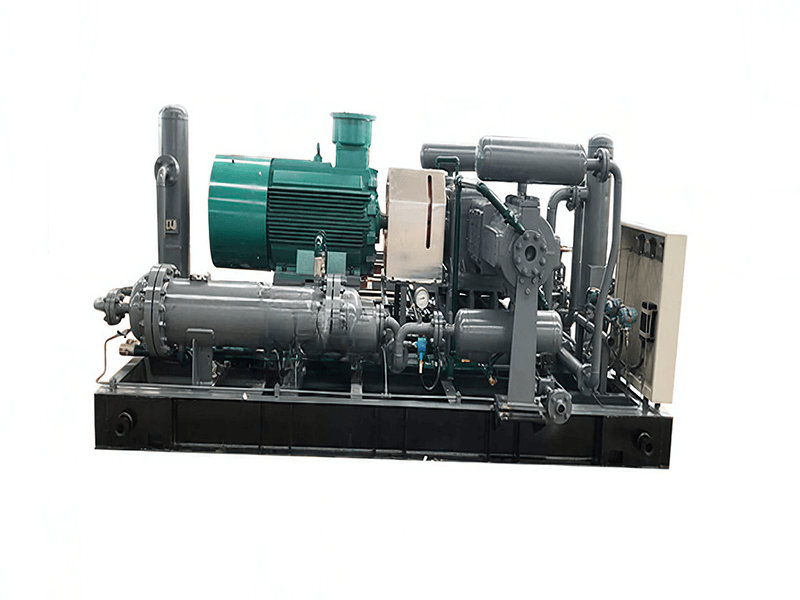

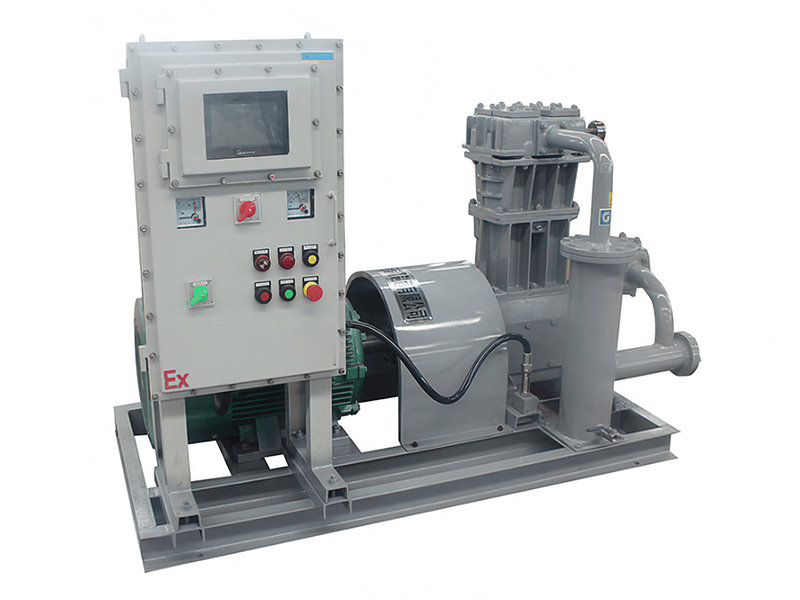

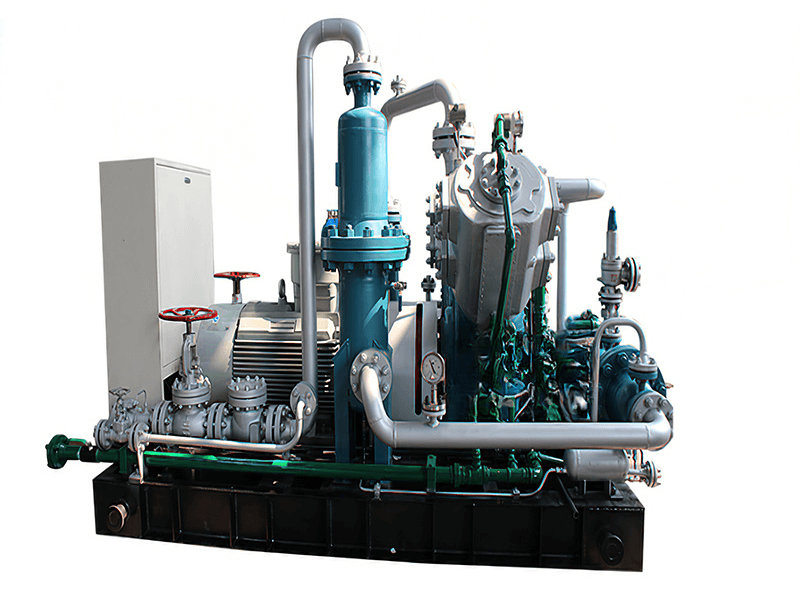

The unit consists of the compressor mainframe, electric motor, coupling, flywheel, piping system, cooling system, electrical equipment, and auxiliary equipment.

Lubrication Method

All of the above products use oil-free lubrication for compressible media compressors.

Cooling Methods

1. Water cooling

2. Air cooling

3. Mixed cooling (Selected based on actual requirements)

Overall Structural Forms

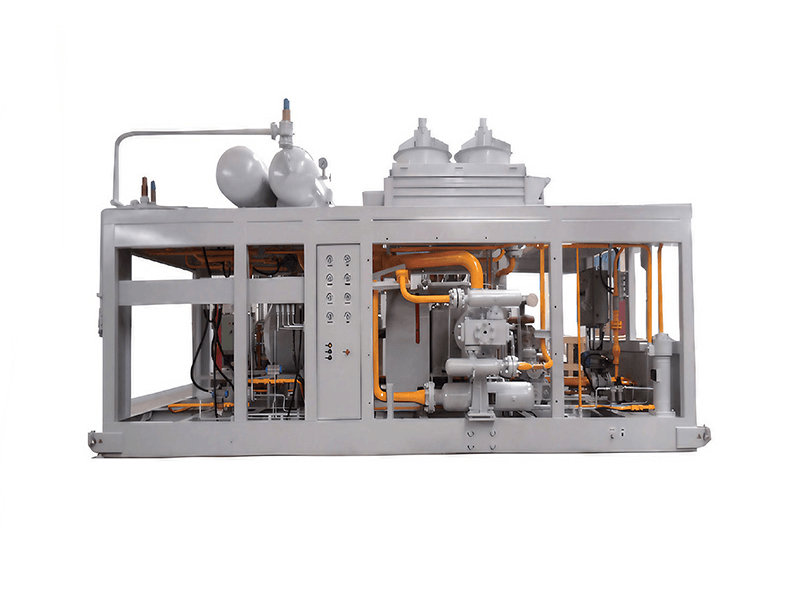

Fixed, mobile, assembly, soundproof cabin (Selected based on actual requirements)

Key Advantages

1. High efficiency, strong reliability, and high level of automation.

2. Fewer wearing parts, low vibration, low noise, and easy operation and maintenance.

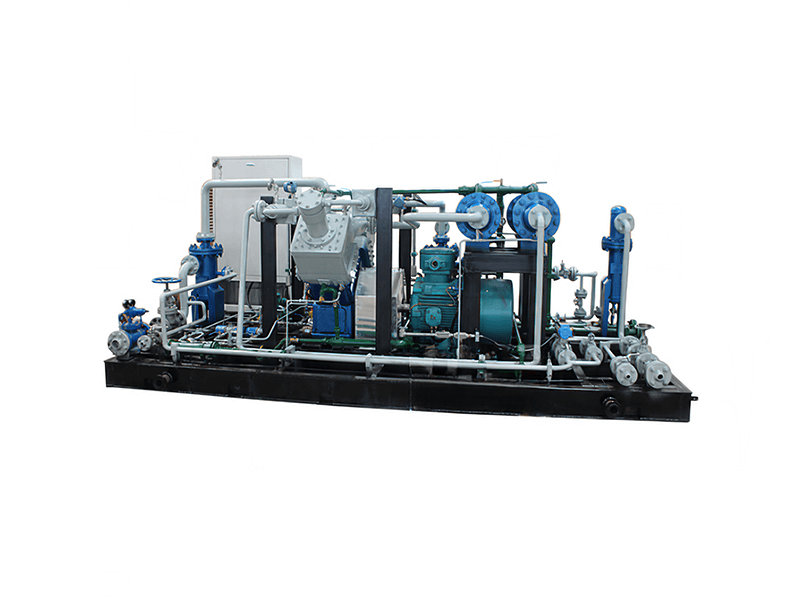

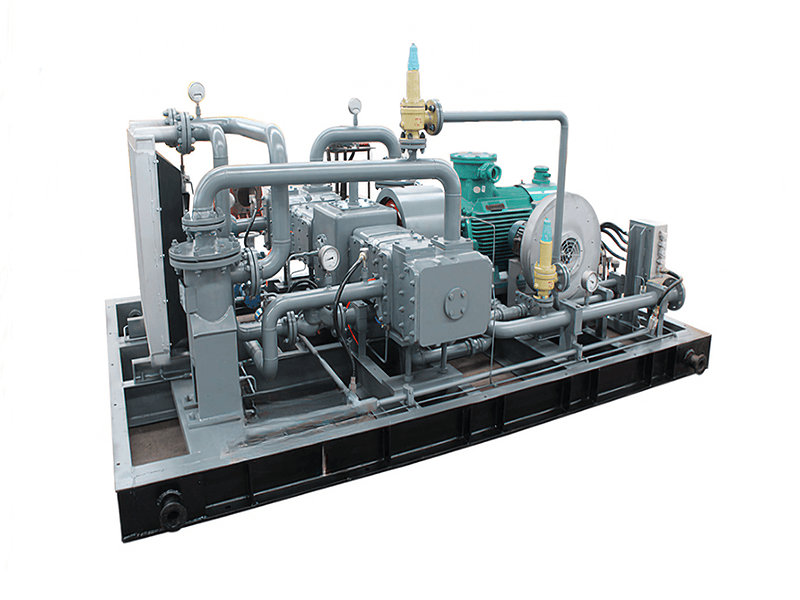

3. The main compressor and auxiliary equipment are all installed on a skid frame, ensuring stable and reliable operation. The overall skid-mounted design facilitates the transportation and installation of the compressor.

4. All machine components are meticulously designed.

Model	Flow m3/min	Inlet Pressure (Mpa)	Outlet Pressure (Mpa)	Weight（Kg)	Power(Kw)
VW-6/16-24	6	1.6	2.4	2600	110
VW-6/(0-1.62)-(5-21)	6	0-0.162	0.5-2.1	2350	75
WW-26.7/0.5-10	26.7	0.05	1	4500	250
DW-2/0.2-16	2	0.02	1.6	1500	22
WW-3/8	3	normal pressure	0.8	1500	22
2VW-50/3.5	50	normal pressure	0.35	6000	220
2VW-16.7/0.5-20	16.7	0.05	2	6500	185
ZW-0.6/6-10	0.6	0.6	1	760	5.5
ZW-0.8/12	0.8	normal pressure	1.2	1200	7.5
DW-9.5/7	9.5	normal pressure	0.7	2600	55
VW-4.5/0.5-10	4.5	0.05	1	2100	37
2VW-25/25	25	normal pressure	2.5	2100	250
2VW-50/3.5	50	normal pressure	0.35	6000	220
DW-4.5/0.5-13	4.5	0.05	1.3	2500	18.5
ZW-0.46/(5-10)-(15-20)	0.46	0.5-1.0	1.5-2.0	850	11
VW-5.6/(1.5-2)-25	5.6	0.15-0.2	2.5	2000	55
V-6.5/(1-3)-7	6.5	0.1-0.3	0.7	1900	37
WW-2.5/3-250	2.5	0.3	25	3500	110
Note: The parameters of this series of natural gas compressors can be customized as follows: Capacity: 0.2-80m³/h, Outlet Pressure: 0.2-35MPa.
