Special Gas Compressor

Carbon Dioxide Gas (Boosting, Recovery, Loading and Unloading) Compressor

Z-type vertical: Displacement ≤ 3m³/min, Pressure 0.02MPa-4MPa

D-type symmetrical: Displacement ≤ 10m³/min, Pressure 0.2MPa-2.4MPa

V-Type: Displacement ranges from 0.2m3/min to 40m3/min, and Discharge Pressure varies from 0.2MPa to 25MPa

Description

Advantages

Parameters

Selection

Download

Product Application

Primarily used in the unloading, loading, tank tipping, residual gas recovery, and liquid residue recovery processes of process gases. Widely applicable in process workflows for pressurization, stabilization, and gas recovery.

Structure Description

The unit comprises a compressor mainframe, electric motor, coupling, flywheel, pipeline system, cooling system, electrical equipment, and auxiliary equipment.

Lubrication Method

1. Oil-free

2. Oil lubrication (Select as per actual requirements)

Cooling Method

1. Water cooling

2. Air cooling (Select as per actual requirements)

Overall Structural Type

Fixed type, mobile type, skid-mounted type, soundproof cabin type, etc. (Select as per actual requirements)

Key Advantages

1. High efficiency, strong reliability, and high level of automation.

2. Fewer wearing parts, low vibration, low noise, and easy operation and maintenance.

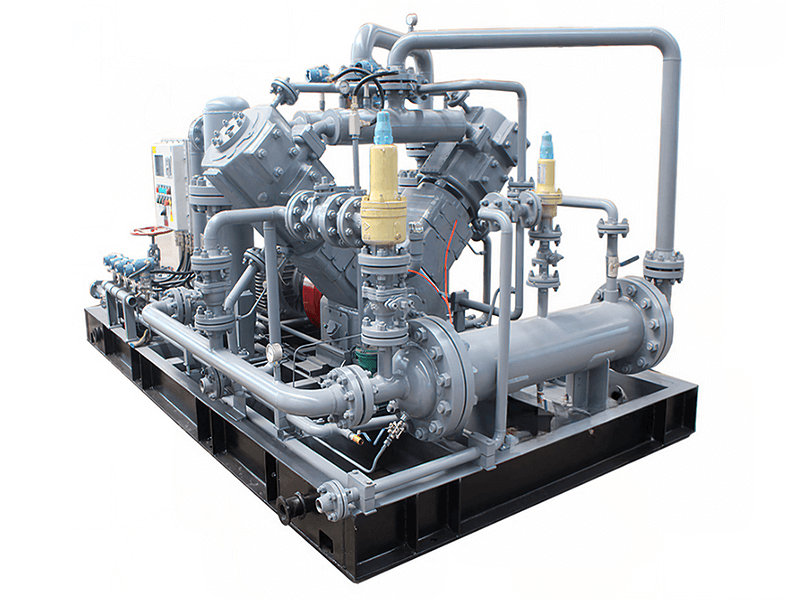

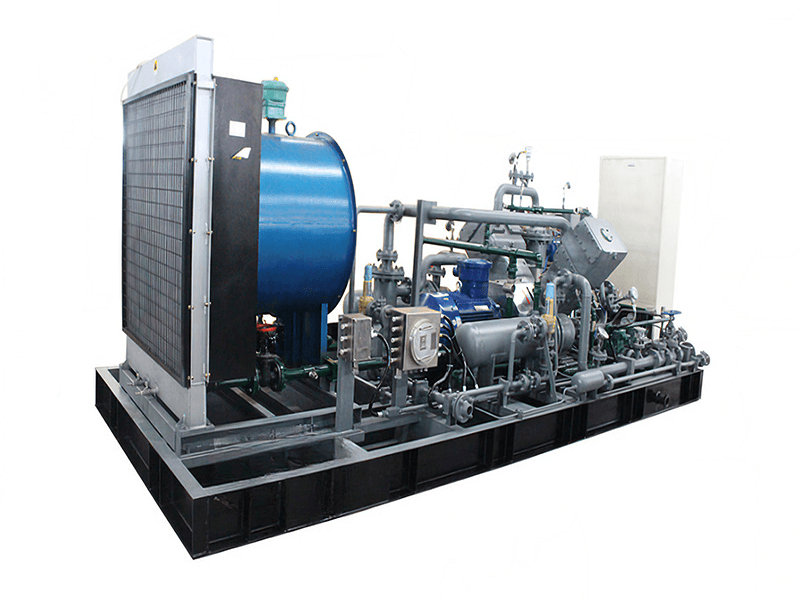

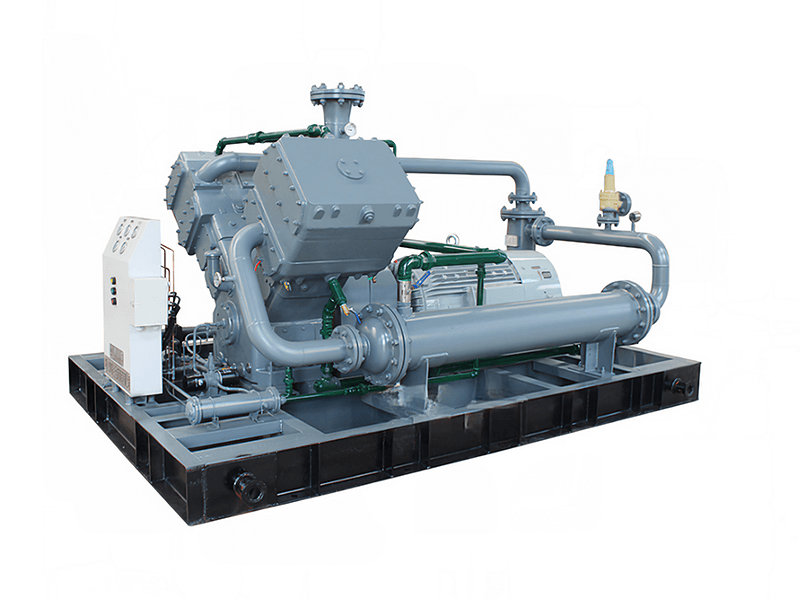

3. The main compressor and auxiliary equipment are all installed on a skid frame, ensuring stable and reliable operation. The overall skid-mounted design facilitates the transportation and installation of the compressor.

4. All machine components are meticulously designed.

Product Features

1. This series of compressor products feature low noise, low vibration, compact structure, smooth operation, high safety and reliability, and a high level of automation. They can also be equipped with remote data display and control systems according to customer requirements.

2. They have functions for low compressor oil pressure, low water pressure, high temperature, low intake pressure, and high discharge pressure alarms, enhancing the reliability of compressor operation.



Model

Capacity

m3/min

Inlet Pressure

(Mpa)

Outlet Pressure

(Mpa)

Weight (Kg)

Power

Kw

VW-6/16-24

6

1.6

2.4

2600

110

VW-6/(0-1.62)-(5-21)

6

0-0.162

0.5-2.1

2350

75

WW-26.7/0.5-10

26.7

0.05

1

4500

250

DW-2/0.2-16

2

0.02

1.6

1500

22

VW-3/8

3

Atmospheric Pressure

0.8

1500

22

2VW-50/3.5

50

Atmospheric Pressure

0.35

6000

220

2VW-16.7/0.5-20

16.7

0.05

2

6500

185

ZW-0.6/6-10

0.6

0.6

1

760

5.5

ZW-0.8/12

0.8

Atmospheric Pressure

1.2

1200

7.5

DW-9.5/7

9.5

Atmospheric Pressure

0.7

2600

55

WW-4.5/0.5-10

4.5

0.05

1

2100

37

2VW-25/25

25

Atmospheric Pressure

2.5

2100

250

2VW-50/3.5

50

Atmospheric Pressure

0.35

6000

220

DW-4.5/0.5-13

4.5

0.05

1.3

2500

18.5

ZW-0.46/(5-10)-15-20)

0.46

0.5-1.0

1.5-2.0

850

11

VW-5.6/(1.5-2)-25

5.6

0.15-0.2

2.5

2000

55

W-6.5/(1-3)-7

6.5

0.1-0.3

0.7

1900

37

VW-2.5/3-250

2.5

0.3

25

3500

110
