Vertical: Displacement ≤ 3m³/min, Pressure 0.02MPa-4Mpa
Symmetrical: Displacement ≤ 10m³/min, Pressure 0.2MPa-2.4Mpa
V-Type: Displacement ranges from 0.2m3/min to 40m3/min, and Discharge Pressure varies from 0.2MPa to 25MPa
Widely used for boosting, stabilizing, providing power, and blowing in various industrial processes. It can also offer a stable power source for power plants, the food industry, pharmaceuticals, and research institutions.
The unit comprises a compressor main unit, an electric motor, a coupling, a flywheel, a piping system, a cooling system, electrical equipment, and auxiliary equipment.
The above products are all oil-free lubrication compressors for compressible media.
2. Air-cooled
(Choose according to actual requirements)
Fixed, mobile, skid-mounted, soundproof container type (Choose according to actual requirements)
These compressors can handle various special chemical gases, including compressed gases, nitrogen, carbon dioxide, ethylene, fluorine, difluoroethane, methane, ethane, propane, natural gas, petrochemical gas, and other chemical specialty gases.
1. High efficiency, strong reliability, and high level of automation.
2. Fewer wearing parts, low vibration, low noise, and easy operation and maintenance.

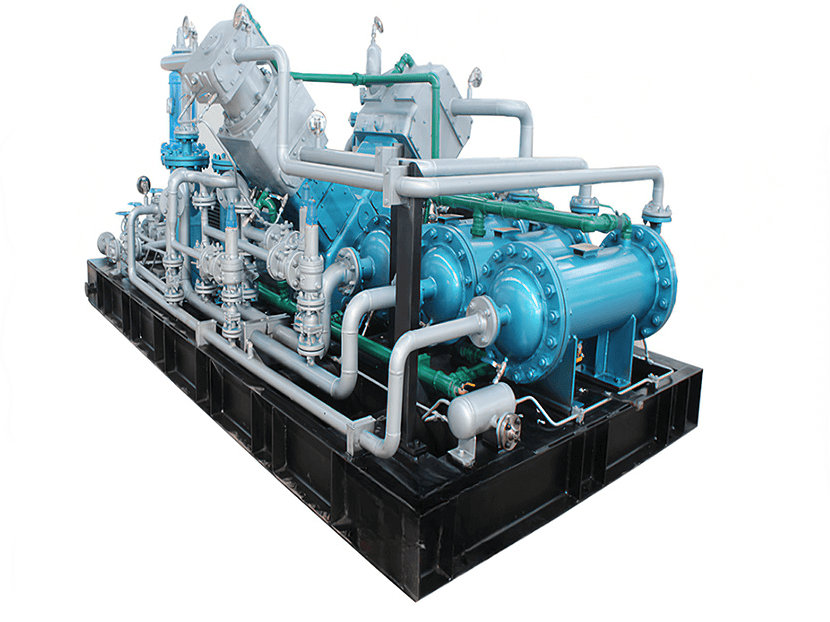

3. The main compressor and auxiliary equipment are all installed on a skid frame, ensuring stable and reliable operation. The overall skid-mounted design facilitates the transportation and installation of the compressor.
4. All machine components are meticulously designed.
1. The product features low noise, minimal vibration, compact structure, stable operation, safety, reliability, and a high level of automation. It can also be equipped with a data display and control system for remote monitoring based on customer requirements.
2. It has built-in alarm and shutdown functions for low compressor oil pressure, low water pressure, high temperature, low inlet pressure, and high discharge pressure, ensuring more reliable compressor operation.
Model |
Capacity m3/min |
Inlet Pressure (Mpa) |
Outlet Pressure (Mpa) |
Weight (Kg) |
Power (Kw) |
VW-6/16-24 |
6 |
1.6 |
2.4 |
2600 |
110 |
VW-6/(0-1.62)-(5-21) |
6 |
0-0.162 |
0.5-2.1 |
2350 |
75 |
WW-26.7/0.5-10 |
26.7 |
0.05 |
1 |
4500 |
250 |
DW-2/0.2-16 |
2 |
0.02 |
1.6 |
1500 |
22 |
VW-3/8 |
3 |
Atmospheric Pressure |
0.8 |
1500 |
22 |
2VW-50/3.5 |
50 |
Atmospheric Pressure |
0.35 |
6000 |
220 |
2VW-16.7/0.5-20 |
16.7 |
0.05 |
2 |
6500 |
185 |
ZW-0.6/6-10 |
0.6 |
0.6 |
1 |
760 |
5.5 |
ZW-0.8/12 |
0.8 |
Atmospheric Pressure |
1.2 |
1200 |
7.5 |
DW-9.5/7 |
9.5 |
Atmospheric Pressure |
0.7 |
2600 |
55 |
WW-4.5/0.5-10 |
4.5 |
0.05 |
1 |
2100 |
37 |
2VW-25/25 |
25 |
Atmospheric Pressure |
2.5 |
2100 |
250 |
2VW-50/3.5 |
50 |
Atmospheric Pressure |
0.35 |
6000 |
220 |
DW-4.5/0.5-13 |
4.5 |
0.05 |
1.3 |
2500 |
18.5 |
ZW-0.46/(5-10)-(15-20) |
0.46 |
0.5-1.0 |
1.5-2.0 |
850 |
11 |
VW-5.6/(1.5-2)-25 |
5.6 |
0.15-0.2 |
2.5 |
2000 |
55 |
W-6.5/(1-3)-7 |
6.5 |
0.1-0.3 |
0.7 |
1900 |
37 |
VW-2.5/3-250 |
2.5 |
0.3 |
25 |
3500 |
110 |
